Description

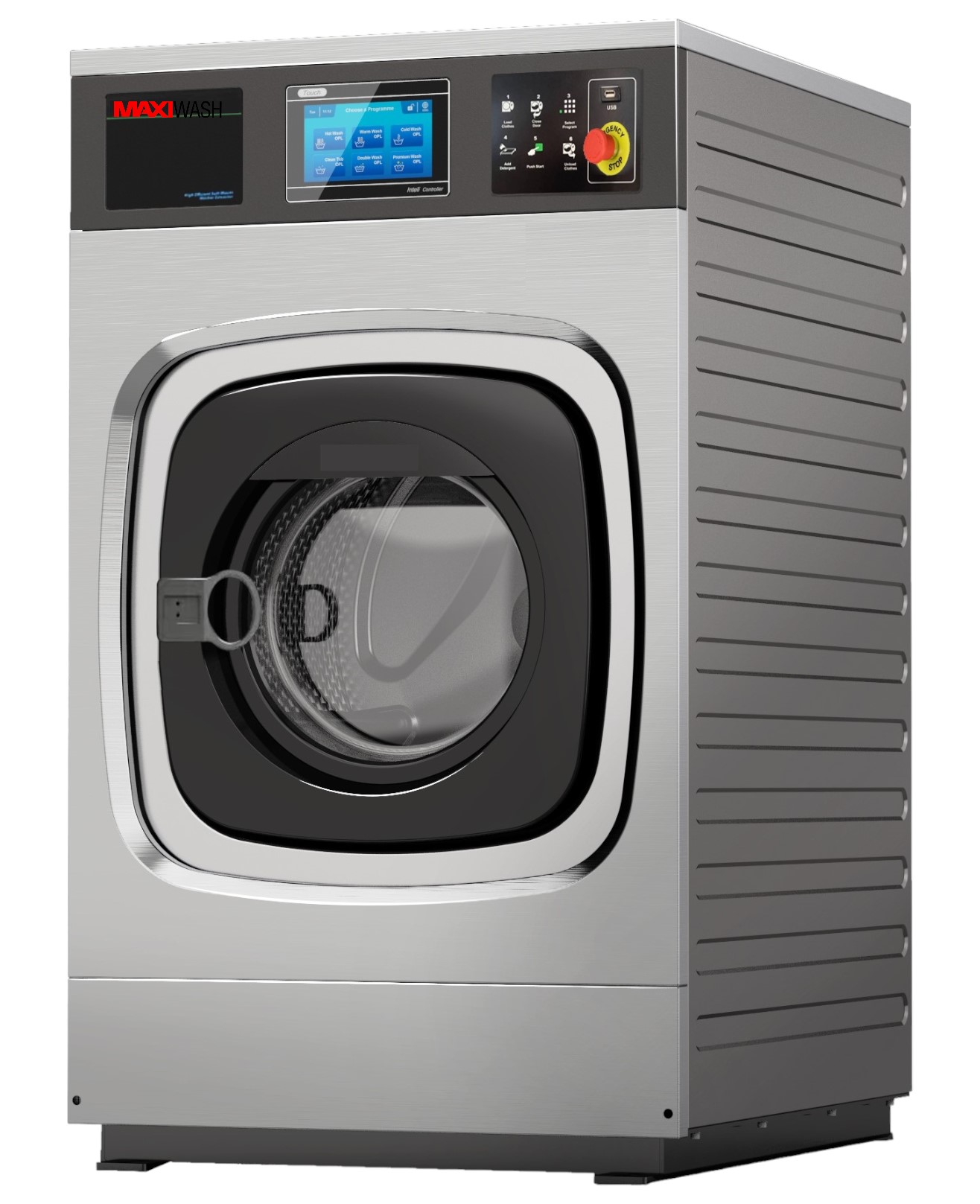

The MWSXTP Series Commercial Washing Machines are available in three models: MWSXTP-150 (15kg), MWSXTP-200 (20kg), and MWSXTP-250 (25kg). These machines offer drum load capacities of 30 lb, 40 lb, and 50 lb, with corresponding drum volumes of 135 L, 185 L, and 230 L. The drum dimensions vary slightly across models, with depths of 478 mm, 504 mm, and 489 mm, and diameters of 600 mm, 683 mm, and 774 mm, respectively.

Each model features a washing speed of 40–50 RPM and high extraction speeds ranging from 200–900 RPM, depending on the model, achieving up to 300 G-force for effective water extraction. The motor power ranges from 0.75 kW to 3.5 kW, while the heater power is rated at 6 kW for 220–240V systems, and 9–18 kW for 380–415V systems. These machines support a power supply of AC 220–415V, 50/60Hz, single or three-phase, and operate at a noise level of less than 70 dB.

In terms of design, the door diameter is 375 mm on the MWSXTP-150 and MWSXTP-200, and 423 mm on the MWSXTP-250, with floor-to-door heights of 643 mm, 668 mm, and 797 mm, respectively. Water inlet sizes are ½ inch for the 15kg and 20kg models and ¾ inch for the 25kg model. Drain outlets are sized at 51 mm for the first two models and 76 mm for the largest unit.

The machine dimensions are as follows:

• MWSXTP-150: 800 mm (W) × 975 mm (D) × 1258 mm (H)

• MWSXTP-200: 900 mm (W) × 1016 mm (D) × 1305 mm (H)

• MWSXTP-250: 1012 mm (W) × 1070 mm (D) × 1485 mm (H)

Approximate machine weights are 250 kg for the 15kg model, 350 kg for the 20kg model, and (incomplete data for the 25kg model; likely 450–500 kg).
