Description

Key Design Features

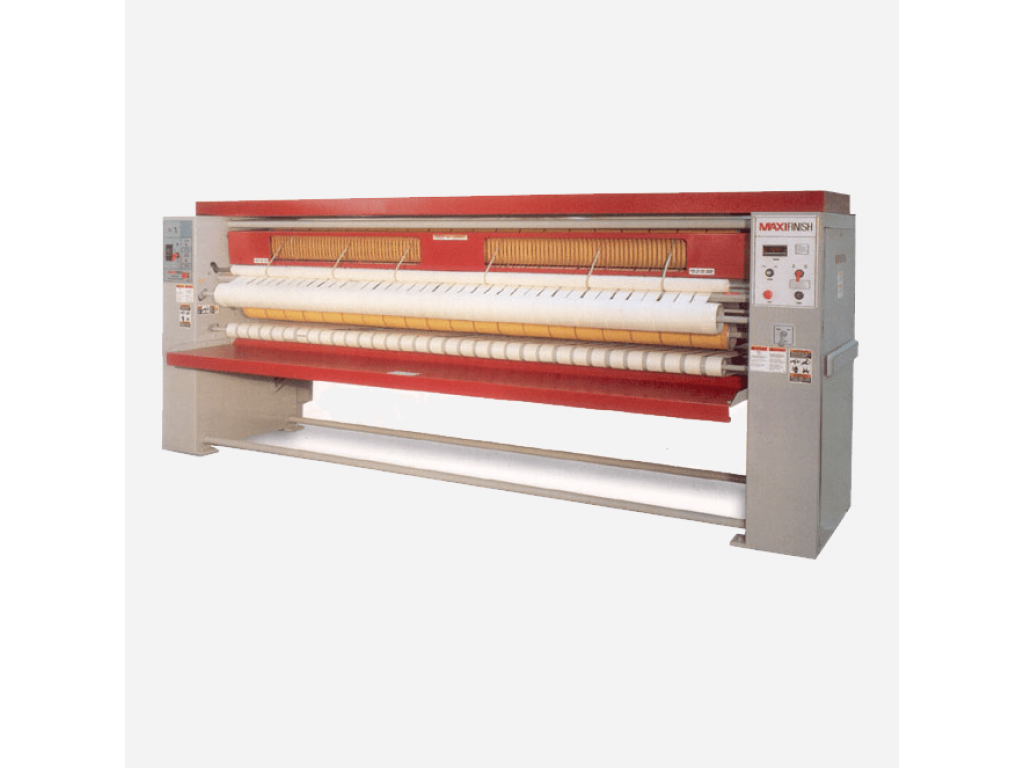

• Highly Polished Revolving Heated Cylinder:
  Optimized for superior heat transfer and a crisp, high-quality fabric finish.

• Touch-Control Variable Speed Drive:
  Offers smooth and extended speed range control with soft-start functionality, minimizing mechanical stress on sprockets, shafts, and bearings.

• Digital Speed Indicator & Jog Function:
  Enables accurate speed adjustment, real-time monitoring, and easy maintenance.

• Dynamic Braking System:
  Maintenance-free braking with no shoes, linings, or discs — ensuring long service life.

• Safety-Focused Construction:

  • Full-width safety finger bar

  • Low voltage controls

  • Bilingual safety labels

  • Full protective guard panels and emergency stop buttons

• Maintenance-Friendly Design:

  • Enclosed electrical control box

  • Lift-off interlocked end panels

  • Pre-shrunk, clipper-laced ribbons for fast replacements

  • Hardened sprockets and high-temp bearings for durability

Heat Source Options

✅ Steam Heated Models

• Designed for systems with 90–125 psi steam supply

• ASME-certified welded cylinders for safety and compliance

• Includes steam trap, internal piping, and rotary steam union

• Flexible inlet/return hoses provided

• Recommended with a full exhaust canopy (blower + motor)

✅ Electrically Heated Models

• Features internal electric heating elements with reflectors

• Thermostat-controlled auto cycling conserves energy

• Best suited for locations where electricity is the preferred energy source

• Operates on three-phase power

• Exhaust canopy with blower/motor recommended

✅ Gas Heated Models (Natural or LP Gas)

• Highest drying performance among all models

• Adjustable thermostat with auto cycling for efficient fuel use

• Advanced gas burner system with high BTU output

• UV flame scanner eliminates the need for flame rods

• Electronic ignition and flame safeguard

• Efficient combustion air circulation ensures uniform flame

• Full exhaust canopy with blower and motor strongly recommended

Performance Output (Speed Ranges)

Why Choose Maxi Ironers?

Since 1886, Maxi has been a pioneer in heated cylinder ironer development. With over 70 years of industry leadership, Maxi ironers continue to set the standard in linen drying, productivity, and durability. Each model is designed with a focus on energy efficiency, reduced maintenance, and maximum throughput, offering faster payback and long-lasting value.
